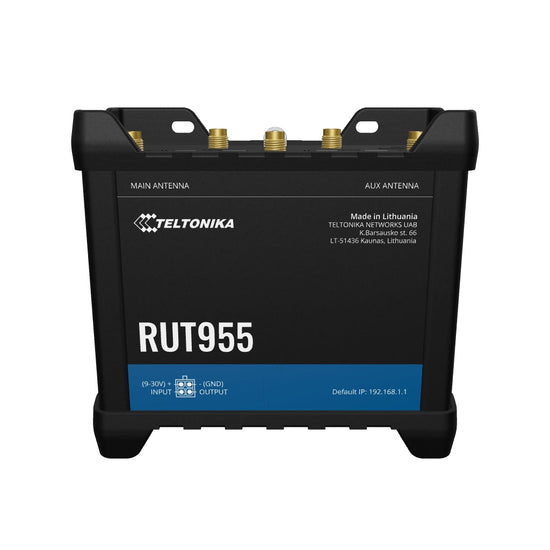

Teltonika RUT955 [RUT955W03660] North America (Verizon, AT&T, T-Mobile) LTE CAT 4 Industrial Cellular Router

Teltonika RUT955 (RUT955W03660) North America (Verizon, AT&T, T-Mobile) LTE CAT 4 Industrial Cellular Router

RUT955 offers a dual-SIM cellular connection, four Ethernet ports, and Wi-Fi combined with RS232, RS485, USB interfaces, and inputs/outputs for an incredible variety of professional application scenarios. This router comes with RutOS advanced software features such as Modbus, SNMP, TR-069, NTRIP, MQTT protocol support, and GNSS tracking capabilities.

Product Overview:

The mobile industrial router provides robust 4G LTE connectivity (up to 150 Mbps download, 50 Mbps upload) and is designed to support multiple applications with comprehensive routing, security, and IoT integration features. Ideal for remote environments, IoT systems, and network-critical applications, this device offers secure, high-performance mobile connectivity with advanced management capabilities.

Key Features:

• Mobile Connectivity:

  • 4G LTE Cat 4, 3G, and 2G support with automatic SIM switching.
  • Dual SIM slots with auto-switching for better network reliability.
  • Full status and monitoring of signal strength, connection types, data usage, and more.
  • SMS/USSD capabilities, including configurable SMS rules and messaging to/from email and HTTP.

• Wireless Connectivity:

  • Dual-band Wi-Fi (802.11b/g/n) with WPA3 security, mesh networking, and fast roaming support.
  • Up to 100 simultaneous connections, with advanced Wi-Fi features such as client separation and MAC address filtering.

• Routing & Networking:

  • Dynamic/static routing (BGP, OSPF, RIP, etc.), advanced traffic management, and QoS.
  • VPN support for OpenVPN, WireGuard, IPsec, L2TP, GRE, and more.
  • Robust firewall with customizable rules, DDoS protection, and multiple WAN failover options.
  • Multiple PDN support for diverse network applications.

• Security & Authentication:

  • Secure boot, attack prevention, and flexible access control.
  • Supports pre-shared keys, digital certificates, and RADIUS for secure authentication.
  • Web filter and mobile data quota management.

• IoT & Industrial Protocols:

  • Full support for MODBUS, BACnet, OPC UA, DNP3, and custom IoT protocols.
  • Integration with cloud IoT platforms like ThingWorx, Azure IoT Hub, and Cumulocity.
  • Data to Server feature with support for HTTP(S), MQTT, and custom scripting.

• Management & Monitoring:

  • Remote monitoring via Teltonika RMS, SNMP, MQTT, and TR-069.
  • Web UI, CLI, SSH, and SMS for device configuration and status monitoring.
  • Firmware over-the-air (FOTA) updates, event logging, and system diagnostics.

• Physical Design & Environmental Protection:

  • Compact, aluminum housing with IP30 ingress protection.
  • Wide operating temperature range (-40°C to 75°C) and industrial-grade durability.
  • DIN rail and wall mount options.

• Power & Connectivity:

  • Flexible power options: 9-30 VDC with reverse polarity protection, PoE support.
  • Multiple I/O ports, including Ethernet, RS232, RS485, USB, and digital/analog inputs/outputs.

Ideal For:

• Remote locations, industrial automation, IoT applications, secure wireless communications, and mobile network backup solutions.
